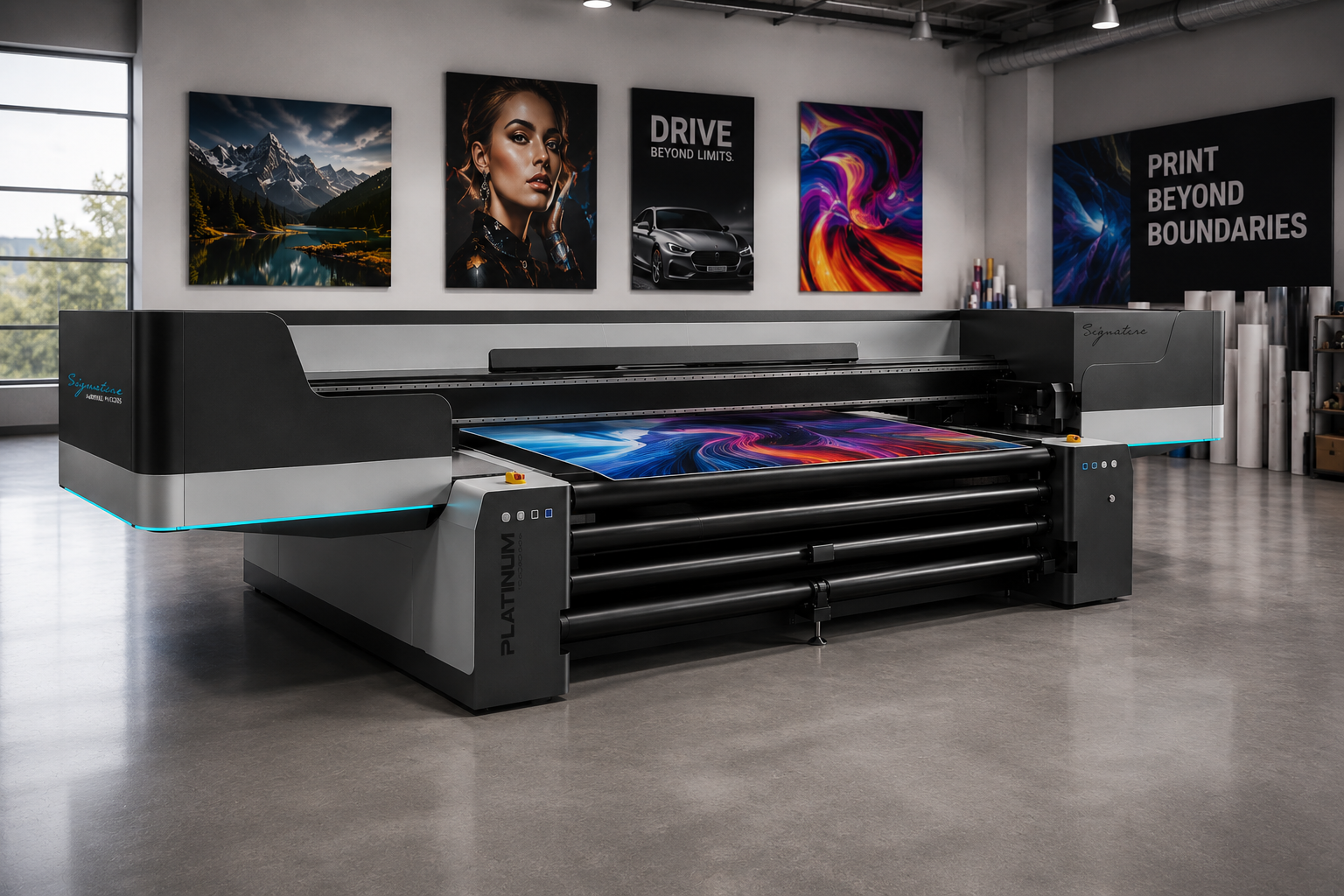

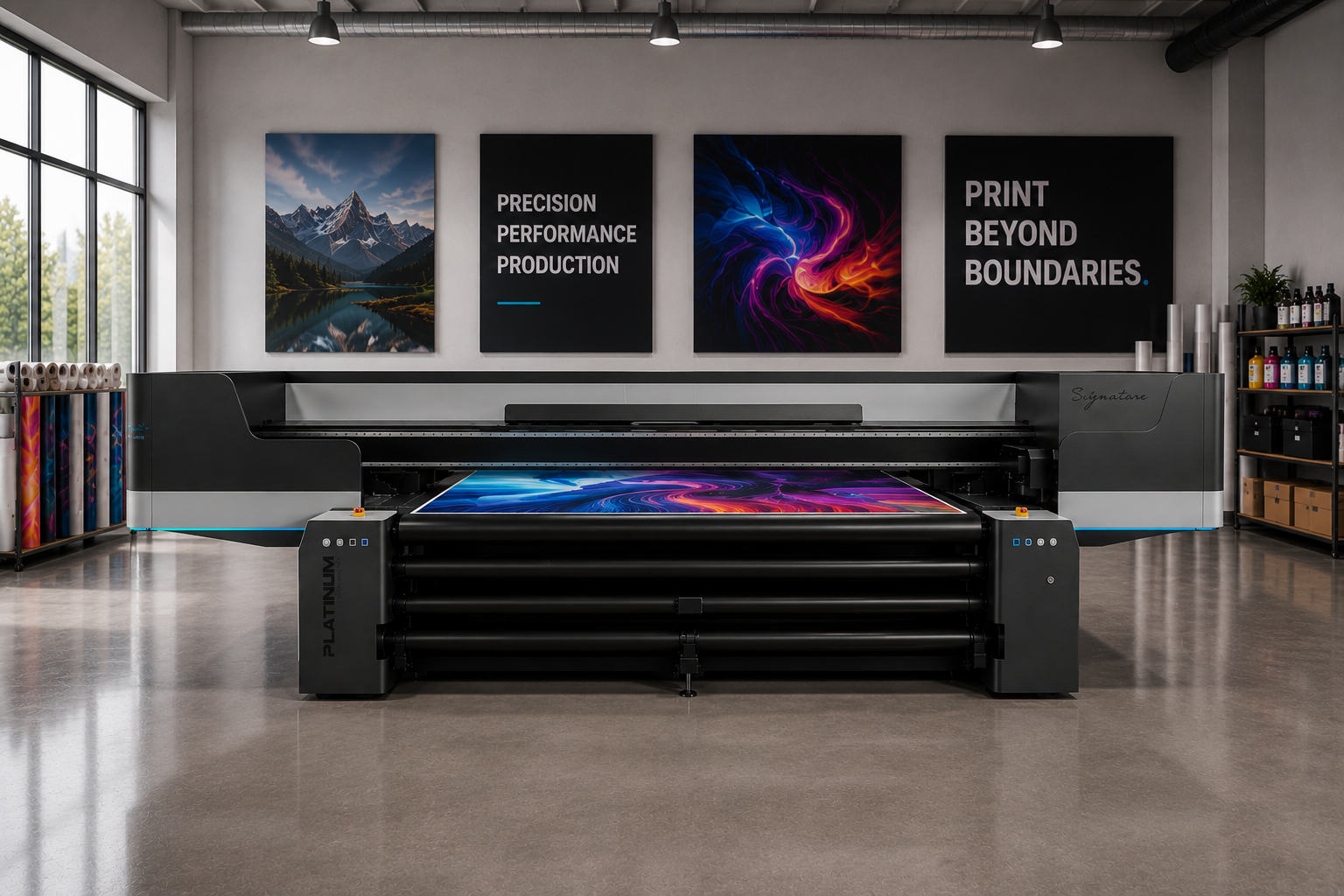

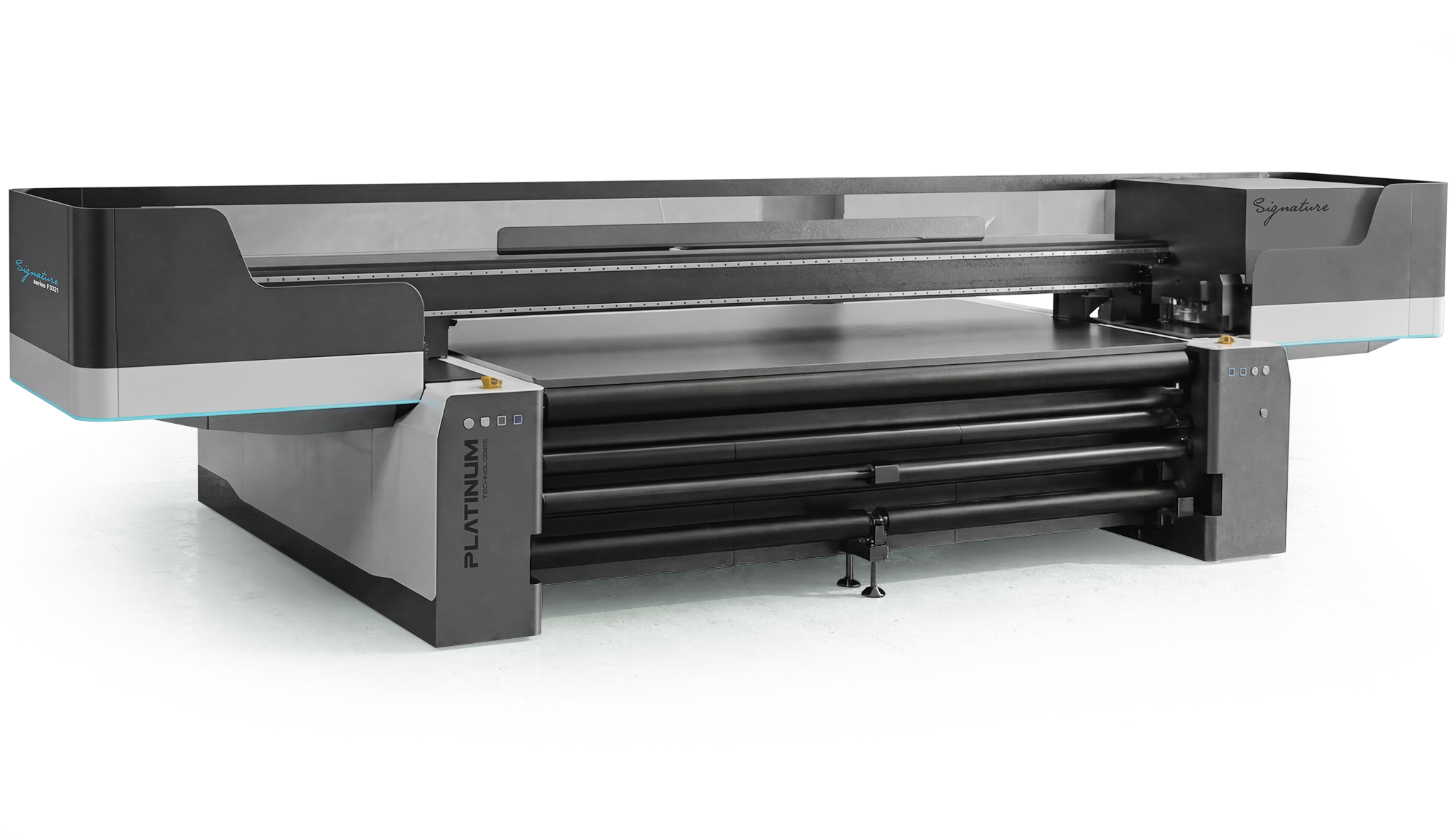

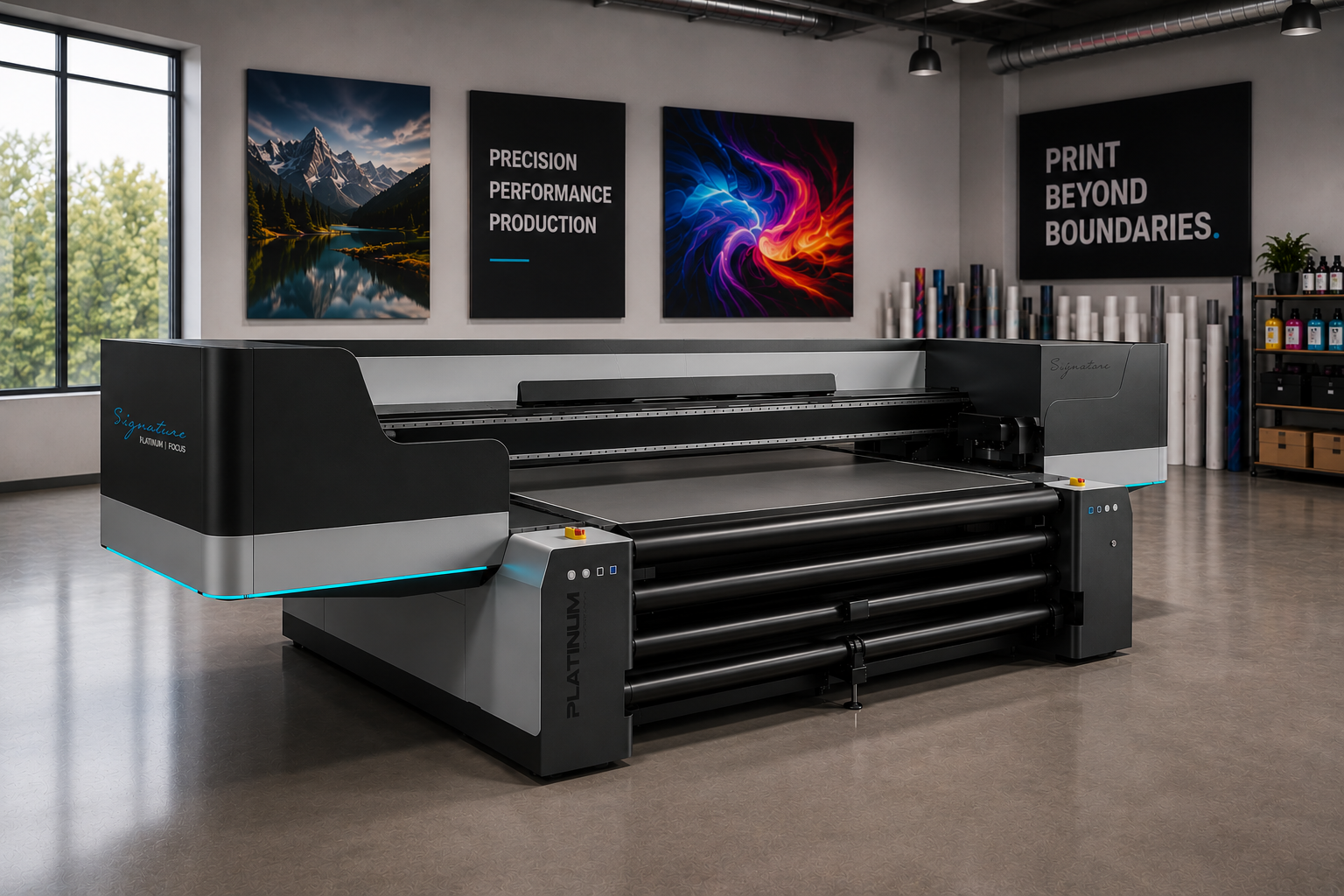

Built for precision rigid production.
The Signature Flatbed platform is engineered for industrial printing applications focused on rigid media production. Designed for stable, high-precision output, the system delivers exceptional print quality across glass, acrylic, MDF, metal, ceramic, and composite surfaces.
Developed around industrial production principles, the Signature Flatbed combines advanced motion control, precision vacuum architecture, and stable media positioning to ensure reliable performance during continuous operation.
Engineering Philosophy
Three core principles define the Signature Flatbed platform:
Rigid Media Precision — optimized carriage control and stable table architecture for consistent high-resolution output.
Industrial Production Stability — engineered for demanding production environments with reliable long-term operation.
Application Flexibility — developed for signage, décor, packaging, and customized industrial surface applications.
Application Range
- Industrial décor and interior applications
- Glass, acrylic, wood, and metal printing
- Architectural signage and display systems
- Packaging prototyping and customized production
- Retail and exhibition graphics
Color Performance
Supporting advanced color configurations including CMYK, White, and optional Varnish channels, the Signature Flatbed platform delivers sharp detail reproduction, strong color density, and premium surface finishing.
Industrial Service Architecture
Every Signature Flatbed system is supported through Platinum’s global technical service structure including preventive maintenance programs, certified technical support, remote diagnostics, and worldwide spare-part accessibility.
The Signature Flatbed is engineered for real industrial production environments where precision, stability, and dependable performance define productivity.
Technical Specifications
| Print Resulation | 2400 DPI |
| Flatbed Size | 2050mm x 3300mm |
| Print Speed Up to | 350 m²/h |
| Print Head | Ricoh Gen6 |
| Print Thickness | 100 mm |
| Ink Type | UV - LED |
| Drop Volume | 5 Pl. |
| Power Requirements | 380v (±10%) / 3x32A / 50 Hz |
| Drying System | LED |
| Machine Weight F3320 | 2900 kg |
| Machine Weight FR3320 | 3600 kg |
| Floor Area F3320 | 3550 x 6870 x 1630 mm |
| Floor Area FR3320 | 3720 x 6870 x 1630 mm |
| Color Scale | CMYK + LcLm + W + V + Neon Color |
| RIP | Photo Print / Caldera (Opt.) |
